B82794C0 Series Toroidal Common Mode Choke Data And Signal Line Ring Core 68mH

B82794C0 Series Data and signal line chokes, toroidal​ common mode choke, ring core 4.7~68mH

Construction of the B82794C0 Series Data and signal line chokes, toroidal common mode choke, ring core 4.7~68mH

• Current-compensated double choke
• Ferrite core
• LCP case (UL 94 V-0), silicone potting
• Bifilar winding
• Silicone potting

Features of the B82794C0 Series Data and signal line chokes, toroidal common mode choke, ring core 4.7~68mH

• High rated currents, reduced components height
• Suitable for reflow soldering
• RoHS-compatible

Function of the B82794C0 Series Data and signal line chokes, toroidal common mode choke, ring core 4.7~68mH

• Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly.

Applications of the B82794C0 Series

• Telecom applications
• RF equipment

Terminals of the B82794C0 Series

• Base material CuSn6
• Layer composition Ni, Sn
• Hot-dipped

Characteristics and ordering codes

Shape and Dimensions:

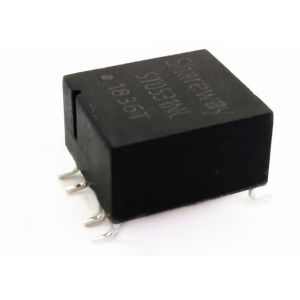

Product picture:

Why us?
Working with worldwide TOP brand customers including Honeywell, Jabil, NorthBound Networks, with fast lead time and high quality,
we always make our customers happy, you could be the next one :).

• Honeywell

Shareway is the preferred supplier of Honeywell.
Shareway ST0531NL is used in Security Alarm Honeywell.
Jabil is the OEM for this project.

• NorthBound Networks

Shareway is the preferred supplier of NorthBound Networks.
Shareway SRJ2113ABNL is used in ZODIAC FX OpenFlow switch NorthBound Networks.
NorthBound Networks is the OEM for this project.

Order Show :

Application Show :

FAQ:

Q: Can I have samples for testing quality?

A: Yes, you can buy some samples of any of our products for testing quality and market

Q: What is the delivery time if we place an order?

A: it depends on order quantities. Usually, we can deliver goods within 3-5 working days for small orders, for bigger quantities, let’s confirm when you place the official order.

Q: Do you accept OEM/ODM?

A: We Support OEM/ODM Services, we turn your idea into reality.

Q: Can I have my own logo on the products?
Yes, you can put your logo on the products with the required order quantity. Please just send us the information about your Logo.
